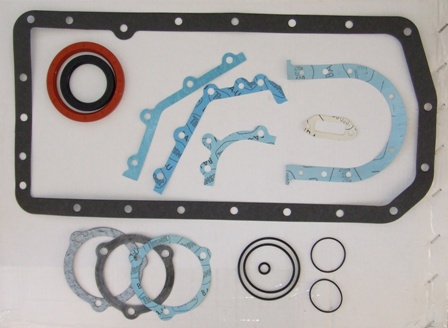

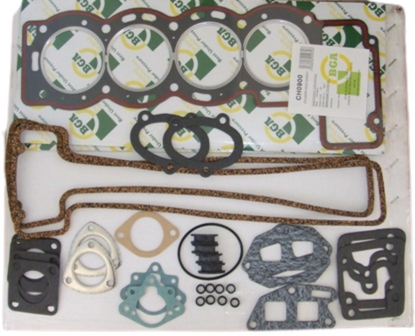

comprises of 2 parts- 1) Cylinder Head gasket set -AJM3305XT (as thumbnail photo) plus gaskets for the lower engine as enlarged pop-up photo.
This Gasket Set Contains:-
- 2 Extra Thick head Gaskets - BGA
- 1 Set Inlet Manifold Gaskets (4 gaskets) - AJM689/90ejw
- 2 Cam Cover Gaskets - AJM457
- 2 Exhaust Flange Gaskets - GEG701
- 4 Head End Rubbers ('D' rubbers) - 144488
- 2 Head End Water Housing Gaskets - 151310
- 8 Cam Cover Screw Seals - 148090
- 1 Thermostat Gasket - GTG103
- 2 Carb Elbow Gaskets - 148007
- 2 Carb Elbow to Airbox Gaskets - 153955
- 4 Carb to Manifold Gaskets (pedastal) -
- 1 O Ring - (Pedastal to Manifold) - 153034
- 1 Sump Gasket - 214580
- 1 Rear Main Seal - 143148
- 1 Oil Pick Up Pipe Gasket - 147458
- 1 Set Timing Chain Gaskets (3 Gaskets) - CA1162
- 1 Oil Seal - Timing Cover - UKC3344
- 1 Rear Oil Seal Housing Gasket - 143845
- 1 Oil Transfer Housing O Ring Large - 144958
- 1 Oil Transfer Housing O Ring Small - 144959
- Oil Pump to block O Ring - 145861
- 1 Gasket - 0.010 thick - 145017
- 1 Gasket - 0.020 thick - 149852
- 1 Gasket - 0.030 this - 149853
- 1 Water Pump Housing O ring - 148169
- 1 Water Pump Housing O ring - 148170
