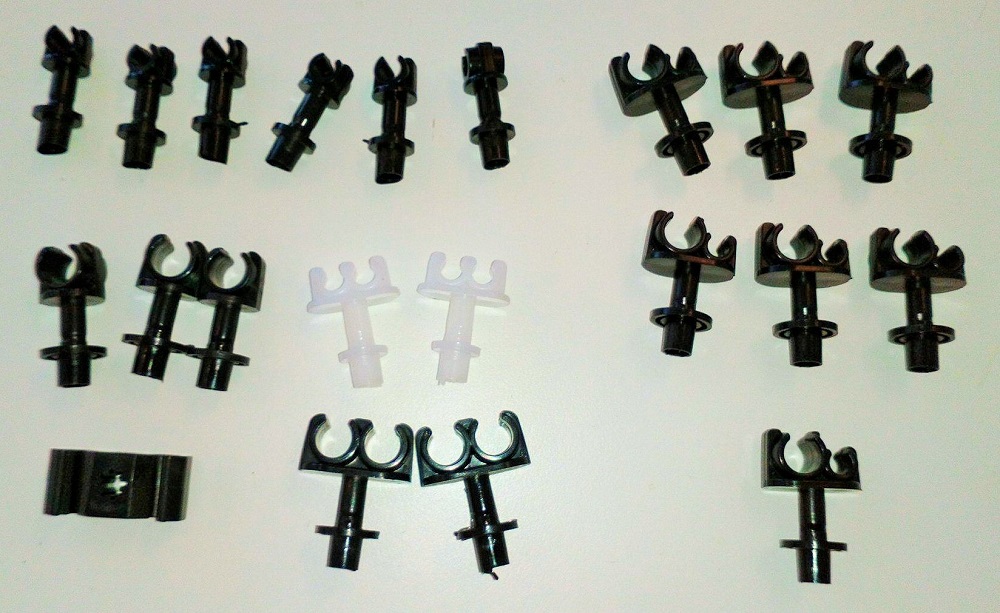

Brake and fuel pipe clip set ( TRIUMPH STAG) KIT CODE CA1051
LOCATION AND PART NUMBER:
SINGLE BRAKE PIPE CLIP - 623312 ( 6)
2 X UNDER REAR SEAT PAN
2 X FRONT CROSS MEMBER
1 X EACH TO EACH TRAILING ARM
1 x SPARE
DOUBLE ( FREE STANDING) CLIP - CA2201 (1)
UNDER NEAR SIDE CHASSIS LEG
DOUBLE BRAKE PIPE CLIP - (2)
2 X NEAR SIDE FRONT CHASSIS LEG
SINGLE FUEL PIPE CLIP: (4) - 150930
2 X NEAR SIDE REAR CHASSIS LEG, 1 X BOOT BULK HEAD, 1 X REAR CROSS MEMBER ABOVE EXHAUST
DOUBLE FUEL PIPE CLIP; (2) - 626960
INSIDE BOOT
COMBI FUEL/ BRAKE PIPE CLIP (7) - 624155
TRANSMISSION TUNNEL
